Abarth Fiat 500 Record Pininfarina

Abarth Fiat 500 Record Pininfarina
ManufacturerAbarth
CountryItaly
Production Started1958
Production Stopped1958
Body StyleCoupe

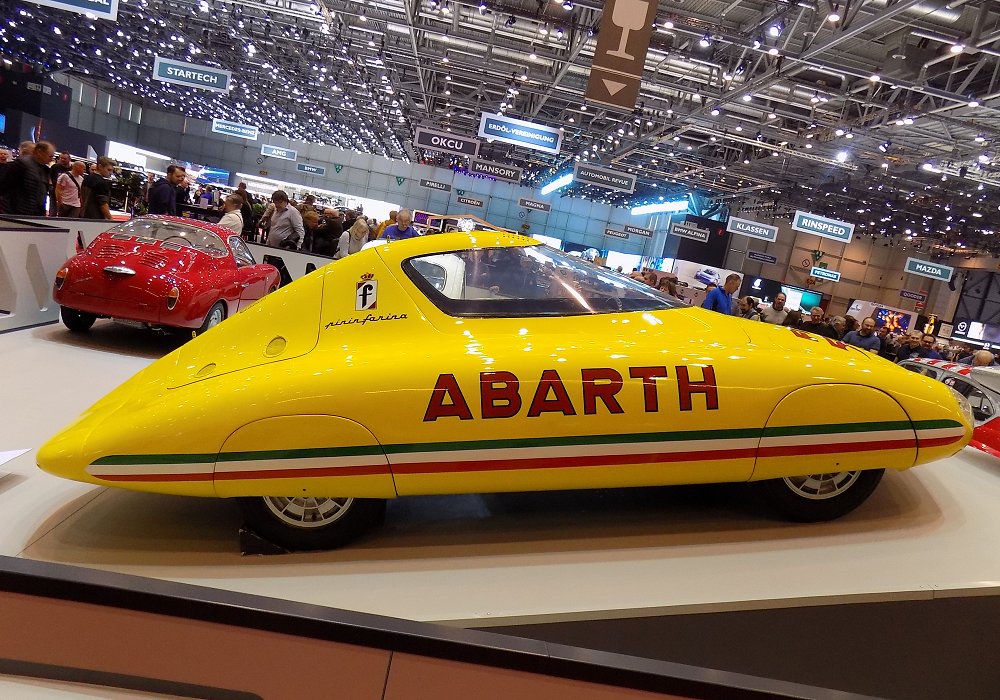

The Abarth Fiat 500 Record Pininfarina is an extraordinary and unique vehicle that combines the tuning prowess of Abarth with the sophisticated design of Pininfarina. Created with the goal of setting speed and endurance records, this streamlined car is based on the Fiat 500 but bears little resemblance to the standard model. Designed as a single-seater with an aerodynamic teardrop shape, the 500 Record was crafted to reduce drag and maximize speed, featuring a sleek, low profile that almost looks like a miniature race car. The record-breaking design came with Pininfarina’s hallmark attention to aesthetics and performance, resulting in a highly efficient and visually striking body.

Underneath its aerodynamic shell, the Abarth-tuned engine was heavily modified to extract as much power as possible from its small displacement. Abarth engineers enhanced the Fiat 500’s standard engine with higher compression, improved carburetors, and an optimized exhaust system, allowing the Record to reach impressive speeds for its size. In 1958, this unique model achieved several world records for its class, including setting endurance records for 48 and 72 hours, which showcased Abarth’s skill in creating small but powerful and reliable engines.

The Abarth Fiat 500 Record Pininfarina is celebrated today as a one-of-a-kind collaboration between two of Italy’s most respected automotive brands. Its rarity, combined with its historical significance as a record-breaking car, makes it an exceptionally valuable collector’s item. The 500 Record Pininfarina stands as a testament to the ingenuity of Italian design and engineering, demonstrating how creativity and technical expertise can push even a tiny car to the limits of performance.

Vehicle

Production Numbers0
Number of Doors1
Number of Seats1

Engine

Engine ManufacturerFiat
EngineInline 2
Engine LocationRear
Engine Displacement479 cc
ValvetrainOHV
Valves per Cylinder2
Bore66 mm
Stroke70 mm
Cooling SystemAir
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed112 mph
Power26 / 36 / 36 @ 6200 rpm
Torque42 / 31 @ 4500 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM4
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight370 kg
Length4130 mm
Width1410 mm
Height1200 mm
Wheelbase2000 mm
