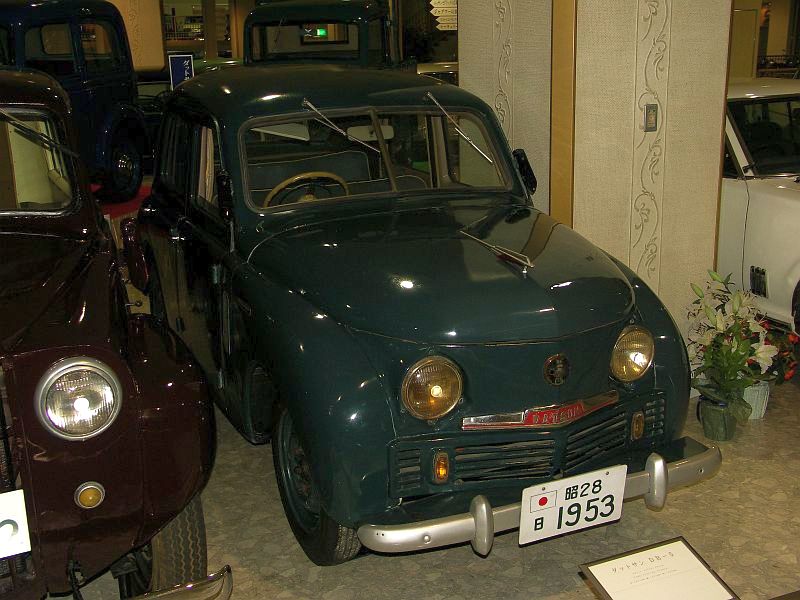

Datsun DB-5

Datsun DB-5
ManufacturerDatsun
CountryJapan
Production Started1953
Production Stopped1953
Body StyleSedan

The Datsun DB-5 was introduced in 1953 as part of Nissan’s postwar push to modernize its vehicle lineup and offer a more refined, full-bodied passenger car to the Japanese market. It was a development of the earlier Datsun DB series, which had started production in 1950, and the DB-5 represented one of the most advanced versions of this series before the company transitioned into newer platforms.

The DB-5 was powered by a 860 cc side-valve four-cylinder engine known as the D10. This engine produced around 25 horsepower, which was modest but acceptable for the time. It was mated to a three-speed manual gearbox and drove the rear wheels. While the performance was not sporty, it was adequate for city driving and short-distance travel, which made the car appealing to a growing class of postwar Japanese motorists.

Stylistically, the DB-5 was designed as a four-door sedan with simple but elegant lines. Its design was influenced by American and European trends of the late 1940s and early 1950s, featuring rounded fenders, a tall upright grille, and smooth body panels. The car’s proportions were compact, making it suitable for Japan’s narrow streets and urban environments, while still offering enough interior space for a small family.

Inside, the Datsun DB-5 featured a straightforward dashboard with basic instruments and switchgear. The materials used were practical rather than luxurious, focusing on durability and simplicity. Seating was usually cloth-upholstered, with room for four passengers. Although equipment levels were minimal, the DB-5 was considered a respectable and modern vehicle for middle-class buyers of the time.

The DB-5 marked one of the final iterations of the DB line before Nissan introduced newer models based on more modern mechanicals. It played a role in establishing Datsun’s reputation for building reliable, economical vehicles and helped bridge the gap between Japan’s early postwar cars and the more sophisticated models of the later 1950s and 1960s.

Today, the Datsun DB-5 is a rare and historically significant vehicle. Few examples have survived, making it a sought-after collector’s item among enthusiasts of early Japanese automobiles. It represents an important step in Nissan’s evolution from producing simple utility vehicles to becoming one of the world’s leading automotive manufacturers.

Vehicle

Production Numbers0
Number of Doors4
Number of Seats4

Engine

Engine ManufacturerDatsun
EngineInline 4
Engine LocationFront
Engine Displacement860 cc
ValvetrainSV
Valves per Cylinder2
Bore60 mm
Stroke76 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed50 mph
Power18 / 25 / 25 @ 4000 rpm
Torque50 / 37 @ 2400 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM4
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight890 kg
Length3805 mm
Width1480 mm
Height1560 mm
Wheelbase2150 mm
