Mazda TCS

Mazda TCS
ManufacturerMazda
CountryJapan
Production Started1935
Production Stopped1935
Body StyleThree-wheeler

The Mazda TCS, introduced in 1935, was an early three-wheeled truck produced by Toyo Kogyo Co., Ltd. (now Mazda). This model followed the success of Mazda’s first vehicle, the DA, and reflected the company’s continued dedication to providing economical, versatile vehicles suited to the needs of Japanese businesses during a period of economic growth and urbanization.

The 1935 TCS was powered by a 669 cc single-cylinder engine, producing around 13 horsepower, a notable improvement over the earlier DA model. The engine offered sufficient power for carrying light loads over short distances, making it ideal for use in urban areas and by small business owners. With a simple 3-speed manual transmission, the TCS was easy to operate and maintain, which made it a popular choice for commercial use.

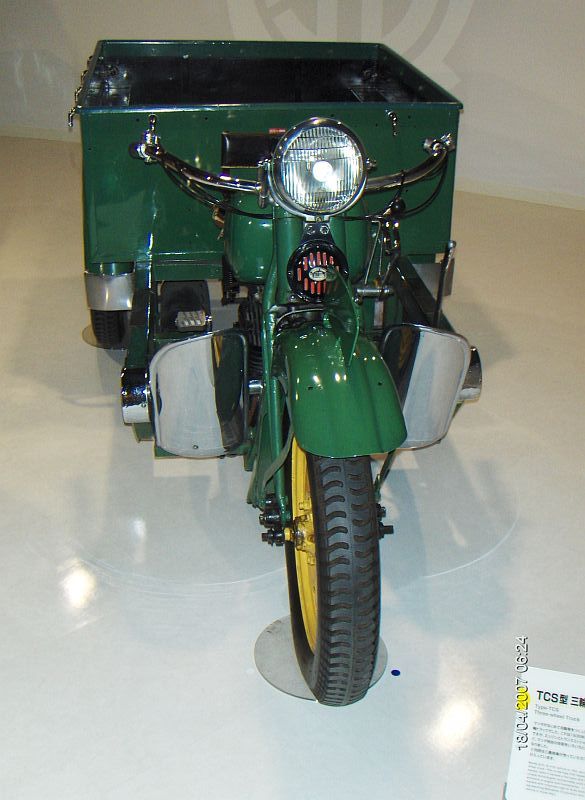

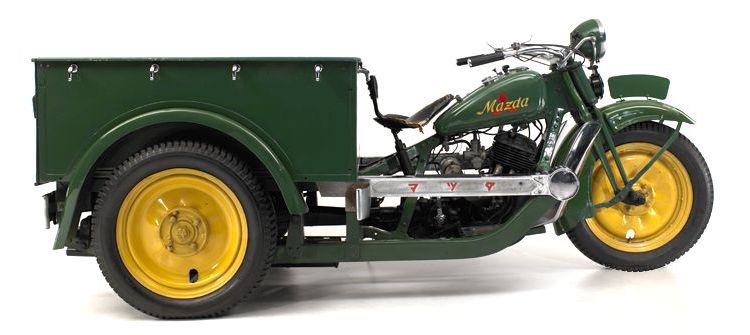

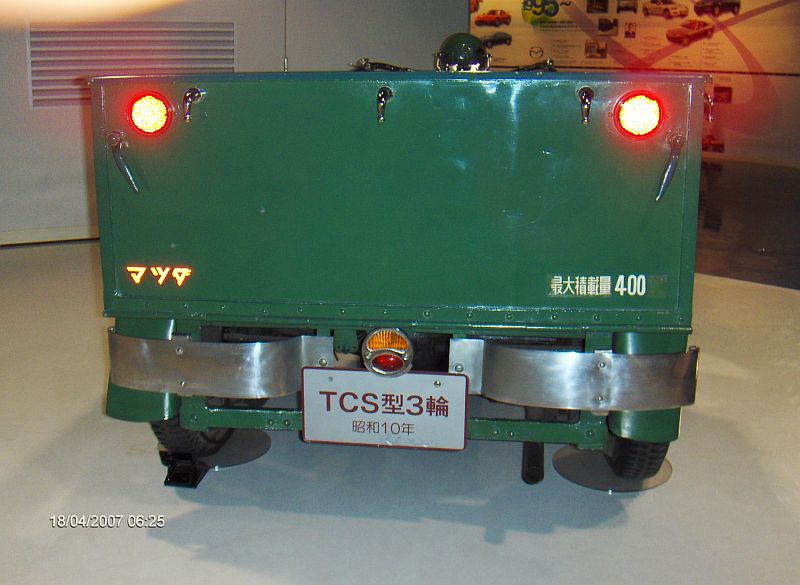

The vehicle’s design followed the standard three-wheeled configuration, with a single front wheel for steering and two rear wheels supporting the cargo bed. This layout provided excellent maneuverability in narrow streets and crowded city environments. The truck’s open cockpit offered a simple driver’s seat and minimal dashboard controls, emphasizing function over comfort. The rear cargo area was designed to carry light goods, suitable for industries such as retail and agriculture.

The 1935 TCS helped Mazda establish a solid reputation in Japan’s light commercial vehicle sector and contributed to Mazda’s early success as an automaker. This model is remembered today as an example of Mazda’s foundational years, highlighting the brand’s early commitment to quality and practical design.

Vehicle

Production Numbers0
Number of Doors0
Number of Seats1

Engine

Engine ManufacturerMazda
EngineInline 1
Engine LocationMid
Engine Displacement654 cc
ValvetrainAIV
Valves per Cylinder1
Cooling SystemAir
Charging System6V
Fuel TypeDiesel
Fuel SystemCarburator
AspirationNormal

Performance

Power10 / 13 / 13 @ 3300 rpm

Steering, Transmission & Suspension

DrivetrainAWD
TransmissionA1,
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Length2780 mm
Width1190 mm
