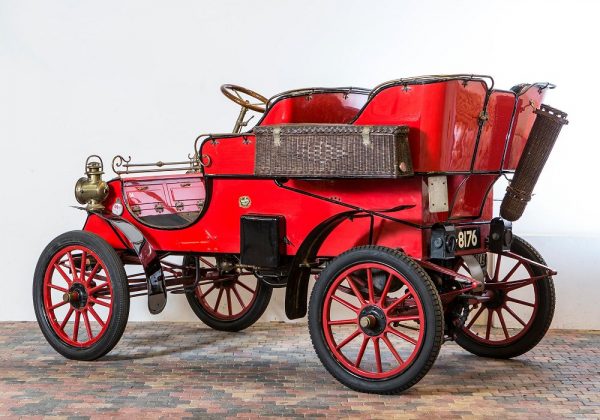

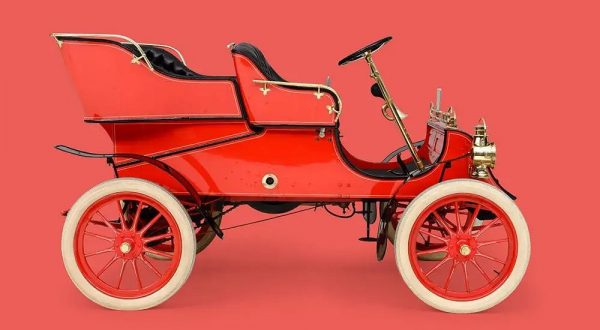

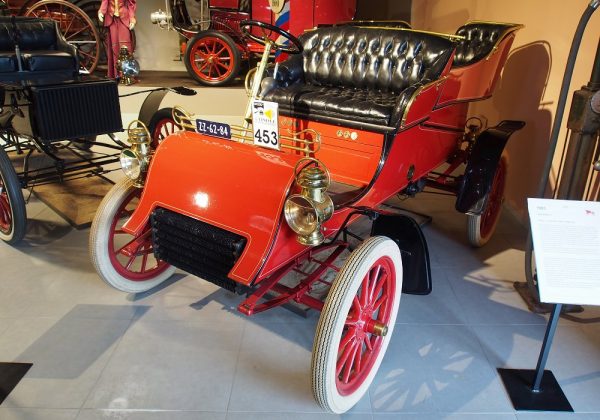

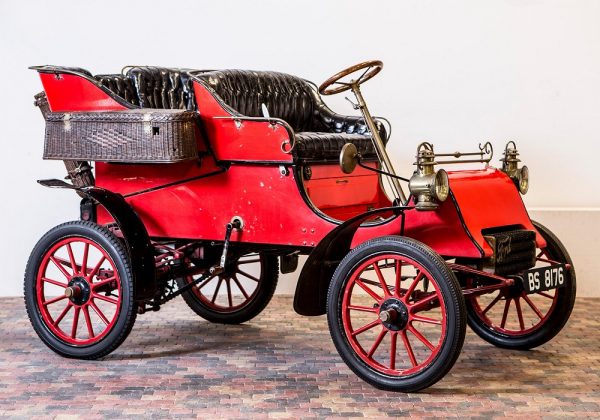

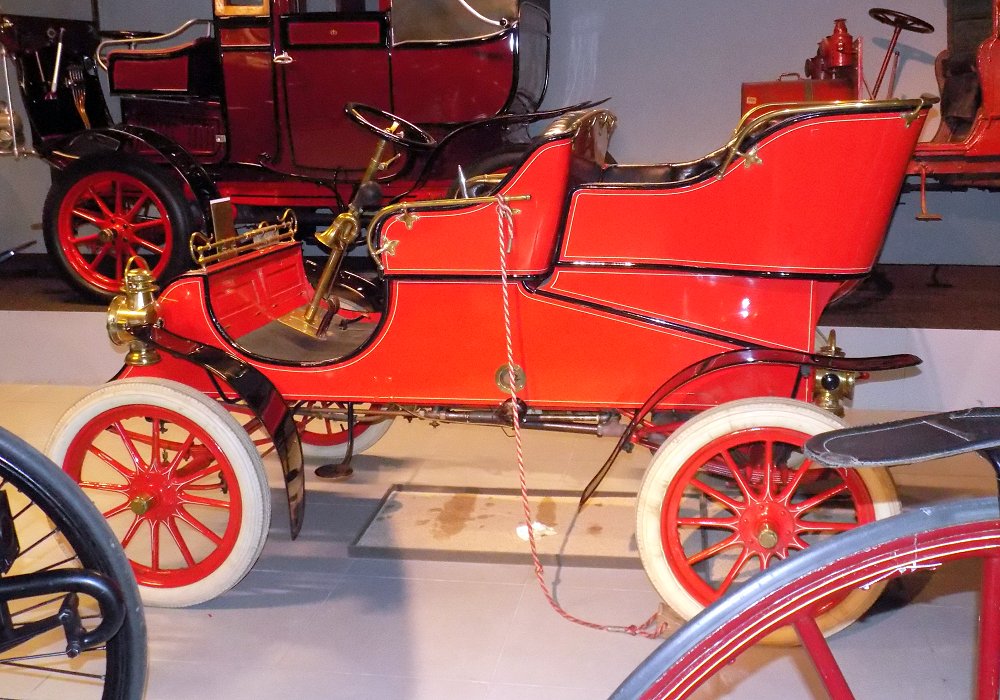

Ford Model A Tonneau

Ford Model A Tonneau
ManufacturerFord
CountryUSA
Production Started1903
Production Stopped1904
Body StyleTonneau

The Ford Model A Tonneau was one of the early versions of Ford’s first production car, introduced in 1903. The Tonneau model featured a rear seating area with a removable rear cover, allowing for more passenger capacity compared to the Runabout model. It was powered by the same two-cylinder, 1.6-liter engine producing 8 horsepower, capable of a top speed of about 28 mph (45 km/h).

The Model A Tonneau had an open-body design, but the extra rear seating and the removable cover made it a more versatile option for those needing more space. Like other early Ford vehicles, it used a planetary transmission and chain drive. It was priced higher than the Runabout, making it a more luxurious version of the Model A. This early success contributed to Ford’s ability to grow and innovate in the automotive industry.

Vehicle

Production Numbers0
Number of Doors1
Number of Seats4

Engine

Engine ManufacturerFord
EngineB2
Engine LocationMid
Engine Displacement1647 cc
ValvetrainSV
Valves per Cylinder2
Bore101.6 mm
Stroke101.6 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed28 mph

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM2
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight560 kg
Length2616 mm
Width1651 mm
Height1448 mm
Wheelbase1829 mm
