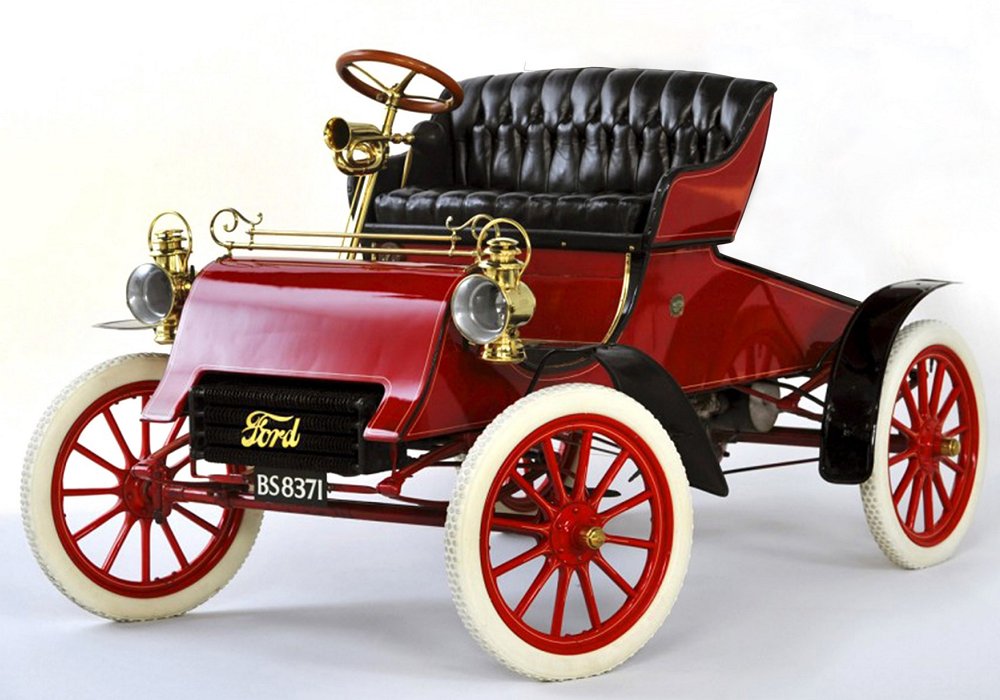

Ford Model A Runabout

Ford Model N Runabout
ManufacturerFord
CountryUSA
Production Started1903
Production Stopped1904
Body StyleRoadster

The Ford Model A Runabout was part of Ford’s first mass-produced car, introduced in 1903. It was a lightweight, two-seater version of the Model A, designed to be an affordable and practical vehicle for everyday use. The Model A was powered by a two-cylinder, 1.6-liter engine that produced around 8 horsepower, capable of reaching a top speed of approximately 28 mph (45 km/h).

The Runabout had a simple, open-body design, with no roof or windshield, and was priced at around $850. It featured a planetary transmission and chain-drive system, which were typical of early automobiles. The Model A’s success helped establish Ford as a major player in the automotive industry, and it was one of the cars that laid the groundwork for the famous Model T introduced a few years later.

The Model A Runabout is now considered an important milestone in automotive history, reflecting the early days of car manufacturing and Henry Ford’s vision for accessible vehicles.

Vehicle

Production Numbers0
Number of Doors0
Number of Seats2

Engine

Engine ManufacturerFord
EngineB2
Engine LocationMid
Engine Displacement1647 cc
ValvetrainSV
Valves per Cylinder2
Bore101.6 mm
Stroke101.6 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed28 mph

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM2
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight560 kg
Length2616 mm
Width1651 mm
Height1448 mm
Wheelbase1829 mm
