Ford GPW 1/4 T

Ford GPW 1/4 T
ManufacturerFord
CountryUSA
Production Started1942
Production Stopped1945
Body StyleOff-road

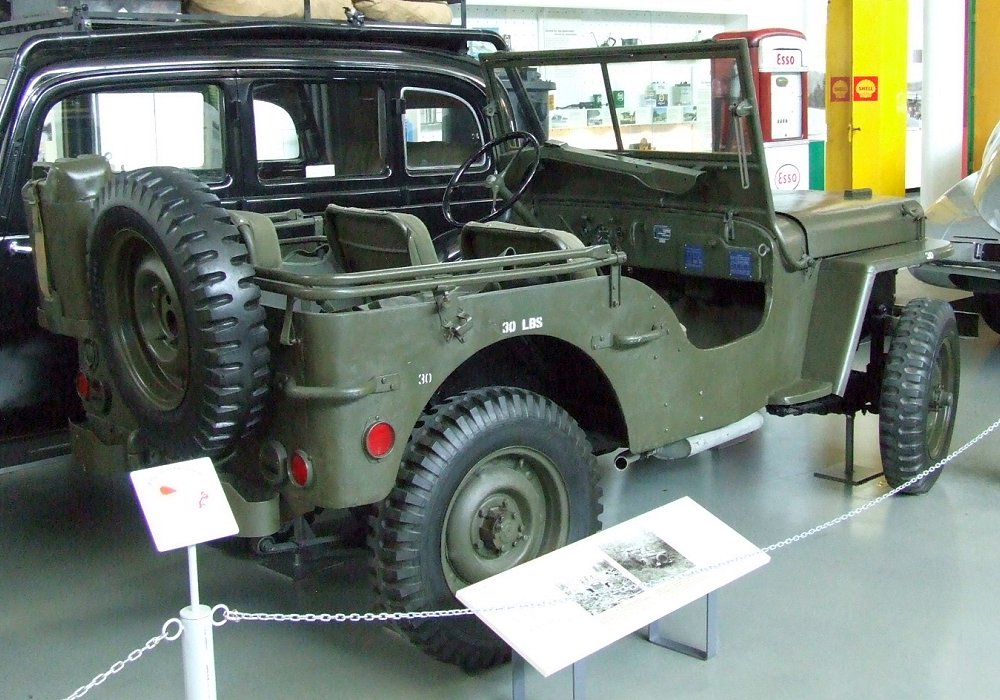

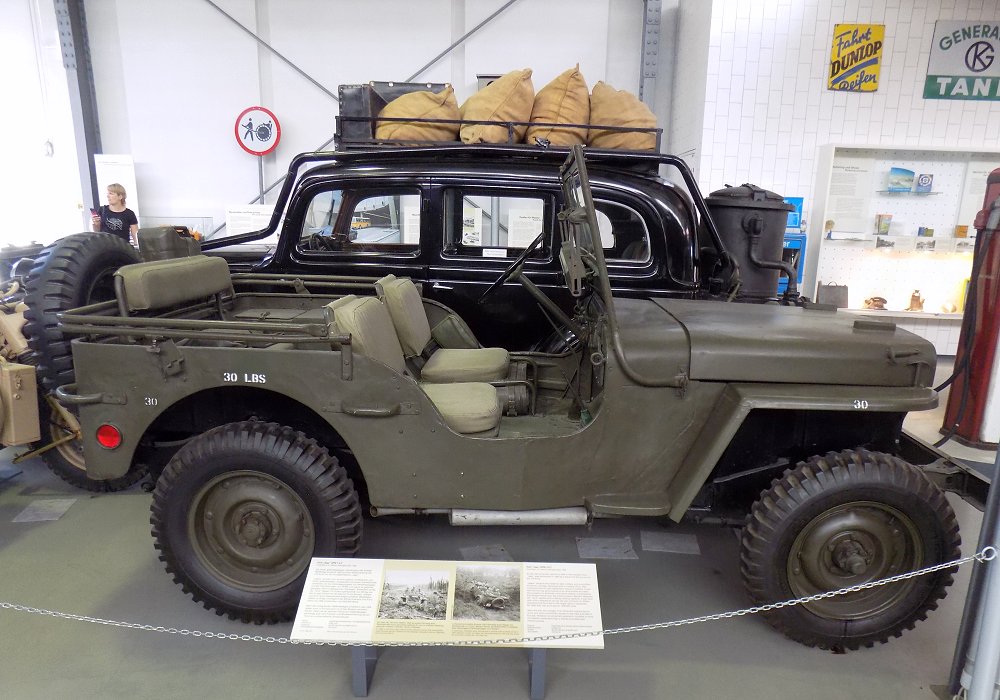

The Ford GPW ¼-Ton, often referred to simply as the “Jeep,” was one of the most important light military vehicles of the Second World War. The “¼-Ton” designation referred to its rated payload capacity, meaning it could carry a quarter ton of cargo in addition to its crew, though in practice it was often pushed well beyond this limit. Produced between 1942 and 1945, the GPW was Ford’s licensed version of the Willys MB, built to a common U.S. Army design standard. Together, the Ford and Willys Jeeps provided the Allied armies with a rugged, versatile, and easily transportable vehicle that became legendary for its role in the war.
Mechanically, the Ford GPW ¼-Ton was powered by the 134 cubic inch (2.2-liter) Willys “Go-Devil” inline four-cylinder engine, producing 60 horsepower and 105 lb-ft of torque. This engine was compact, reliable, and provided enough low-end torque to handle tough terrain. Power was delivered through a three-speed manual gearbox and a two-speed transfer case, giving the GPW full four-wheel drive capability. Its short 80-inch wheelbase, light weight, and simple leaf-spring suspension gave it remarkable agility in mud, sand, snow, or rocky conditions.

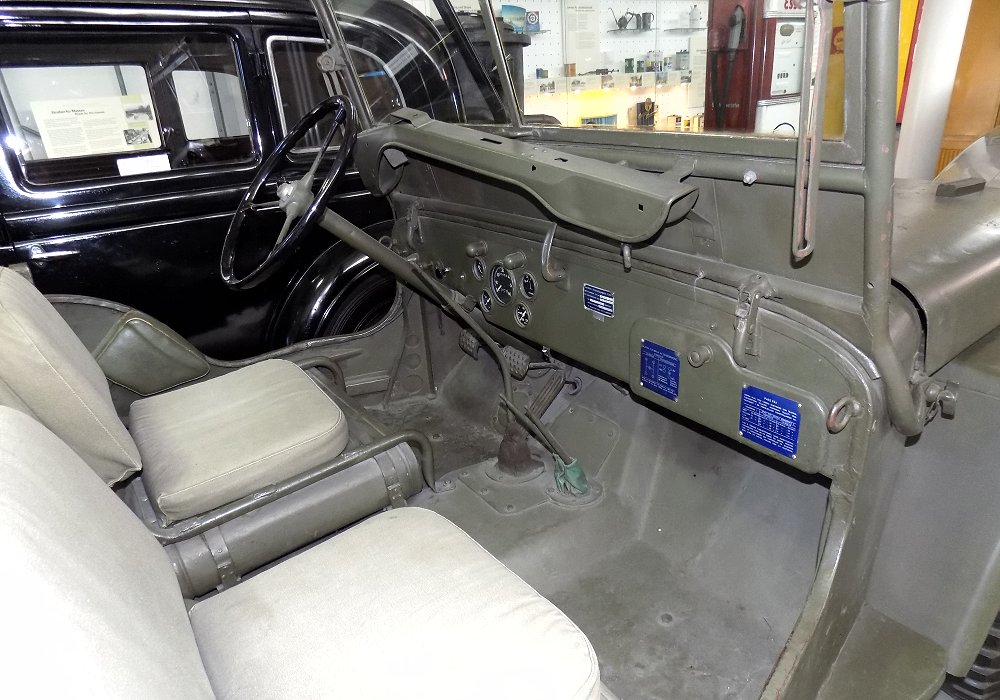

The body was extremely utilitarian, with flat steel panels for ease of production and repair. Seating for four was provided, with a folding windshield, open sides, and a canvas top that could be raised or lowered as needed. The rear carried a spare wheel and jerrycan, while basic tools such as a shovel and axe were often mounted on the body. Despite its small size, the GPW ¼-Ton could be fitted with radios, stretchers, or even light weapons, making it one of the most adaptable vehicles of the war. It could also be transported by aircraft, dropped by parachute, or towed behind larger vehicles, ensuring its presence in nearly every theater of operations.
Between 1942 and 1945, Ford built approximately 277,000 GPWs, while Willys produced about 360,000 MBs. Parts were standardized and interchangeable, which was vital for field repairs. Ford’s GPWs were distinguished by the small stamped “F” found on many components, marking them as Ford-built. The vehicles became so iconic that “Jeep” became a generic name for all of them, a term that later evolved into the Jeep brand itself.
The Ford GPW ¼-Ton earned a reputation for reliability and toughness, often operating in the harshest conditions with minimal maintenance. It played roles ranging from reconnaissance and courier duties to ambulance and artillery towing, and it became a symbol of Allied mobility and ingenuity. General George C. Marshall famously called it “America’s greatest contribution to modern warfare.”
Today, surviving Ford GPW ¼-Ton Jeeps are highly collectible military vehicles, cherished by enthusiasts, museums, and reenactors. Restored examples, especially those retaining their original Ford-stamped parts, highlight not only their wartime service but also their enduring legacy as one of the most influential vehicles ever built.

Vehicle

Production Numbers277896
Number of Doors0
Number of Seats4

Engine

Engine ManufacturerFord
EngineInline 4
Engine LocationFront
Engine Displacement2199 cc
ValvetrainSV
Valves per Cylinder2
Bore79.4 mm
Stroke111.1 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed65 mph
Power44 / 60 / 59 @ 3600 rpm
Torque142 / 105 @ 1800 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM3
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight1045 kg
Length3359 mm
Width1575 mm
Height1772 mm
Wheelbase2032 mm
