Enzmann 506 1200 MAG

Enzmann 506 1200 MAG
ManufacturerEnzmann
CountrySwitzerland
Production Started1958
Production Stopped1959
Body StyleRoadster

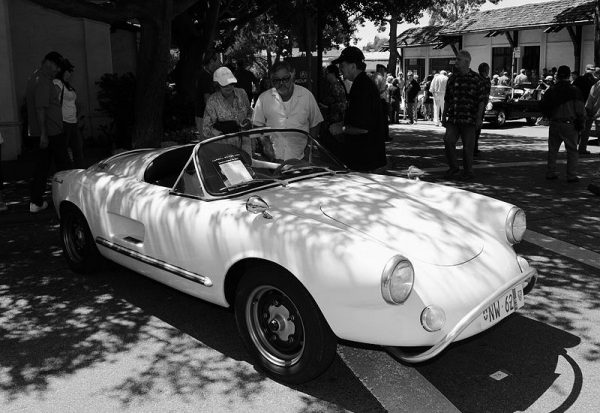

The Enzmann 506 1200 MAG was a variant of the original Enzmann 506 sports car. Like the standard model, the 506 1200 MAG featured a fiberglass body mounted on a Volkswagen Beetle chassis, making it lightweight and efficient. The “1200” indicated the 1200cc Volkswagen engine, but in the MAG version, it was often tuned or replaced with higher-performance engines for better power output.

The Enzmann 506 was popular for its simple, sleek design and its kit-car nature, allowing enthusiasts to make modifications. The MAG variant typically referred to models fitted with enhanced engines or aftermarket components to improve performance and handling. This made it more desirable to those looking for a sportier experience, while still keeping the lightweight, minimalist aesthetic that Enzmann was known for.

Although the Enzmann 506 1200 MAG remained rare, it is highly valued among collectors and enthusiasts of vintage and kit cars. Its distinctive body shape, low profile, and fiberglass construction reflect the innovative and cost-effective engineering solutions of its era.

Vehicle

Production Numbers0
Number of Doors0
Number of Seats2

Engine

Engine ManufacturerVolkswagen
EngineB4
Engine LocationRear
Engine Displacement1192 cc
ValvetrainOHV
Valves per Cylinder2
Bore77 mm
Stroke64 mm
Cooling SystemAir
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed87 mph
Power31 / 42 / 41 @ 3400 rpm
Torque95 / 70 @ 2000 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM4
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight550 kg
Length4200 mm
Width1600 mm
Height1280 mm
Wheelbase2400 mm
