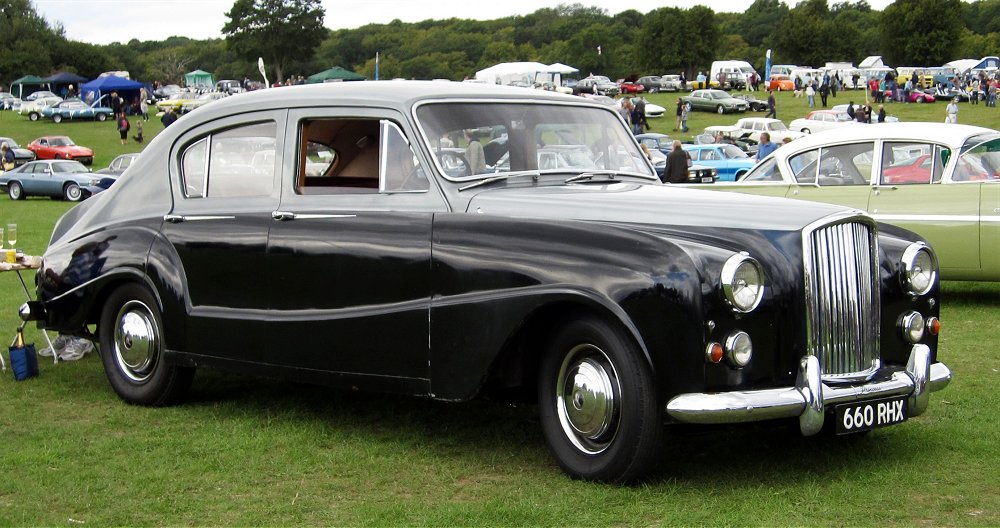

Austin A135 Princess Mk IV

Austin A135 Princess Mk IV
ManufacturerAustin
CountryUK
Production Started1956
Production Stopped1960
Body StyleSedan

The Austin A135 Princess Mk IV was the final evolution of the A135 series, produced in the late 1950s and early 1960s. It represented the pinnacle of Austin’s luxury lineup before the transition to the Vanden Plas brand. The Mk IV maintained the stately elegance and high-quality craftsmanship of its predecessors while incorporating refinements to enhance performance and passenger comfort.

Powering the A135 Princess Mk IV was the well-established 4.0-liter inline-six engine, delivering smooth and reliable performance. It was paired with a four-speed manual transmission, and later models offered an automatic gearbox for improved ease of driving. The car’s suspension system was further refined, providing an exceptionally smooth ride, making it a favored choice for chauffeur-driven use.

Externally, the Mk IV retained the dignified styling of the Princess range, with an imposing front grille, flowing body lines, and elegant chrome accents. The limousine variant featured an extended wheelbase, allowing for a spacious rear cabin equipped with high-quality leather upholstery, polished walnut trim, and thick carpeting. A partition window and fold-out jump seats were available, catering to official and diplomatic transport needs.

The A135 Princess Mk IV was widely used by government officials, royalty, and dignitaries, solidifying its reputation as a luxury vehicle of distinction. It marked the final chapter of Austin’s standalone luxury cars before the Princess series was fully integrated into the Vanden Plas marque, where the tradition of hand-crafted British luxury continued.

Vehicle

Production Numbers175
Number of Doors4
Number of Seats5

Engine

Engine ManufacturerAustin
EngineInline 6
Engine LocationFront
Engine Displacement3993 cc
ValvetrainOHV
Valves per Cylinder2
Bore87.3 mm
Stroke111.1 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed99 mph
Power110 / 150 / 148 @ 4100 rpm
Torque308 / 227 @ 2400 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM4
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight2020 kg
Length5105 mm
Width1861 mm
Height1670 mm
Wheelbase3092 mm
